Step 12: RAID Troubleshooting
📋 Runbook Callout
Firefighting? This is your primary reference during a storage incident. Start with RAID status, identify the failed component, activate the locator LED, then follow the replacement workflow. Do not power cycle during a rebuild.
12a. Interpret RAID Status
| Status | Meaning | Action |
|---|---|---|
| Optimal | All disks healthy, full redundancy | None |
| Degraded | One or more disks failed, redundancy reduced | Replace failed disk immediately |
| Reconstruction | Rebuild in progress after disk replacement | Monitor to completion, do not disturb |
| Failed | Redundancy exhausted — data at risk or lost | Escalate immediately |
| Offline | Virtual disk is inaccessible | Check controller and physical connections |
racadm storage get vdisks -o -p Name,RAIDStatus,RemainingRedundancy12b. Identify and Locate the Failed Disk
# List physical disks with status
racadm storage get pdisks -o -p DeviceDescription,State,MediaType,Size

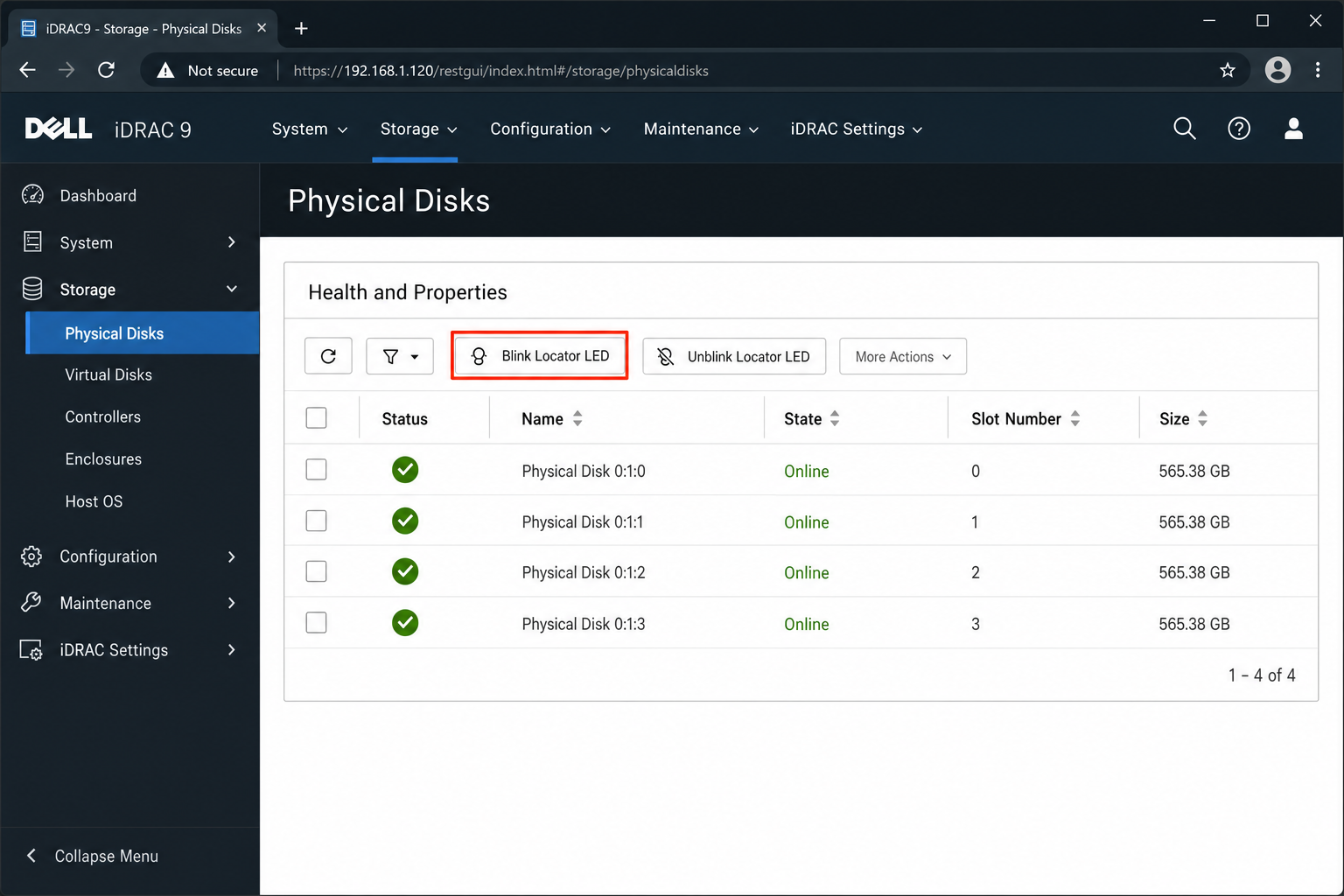

# Activate locator LED on the failed disk (blinks amber)
racadm storage blink:Disk.Bay.2:Enclosure.Internal.0-1:RAID.Integrated.1-1Walk the physical disk bays — the blinking amber LED identifies the exact drive to pull.
12c. Replace Member Disk Workflow
- Confirm the replacement disk matches the failed disk’s interface (SAS/SATA), media type (HDD/SSD), and capacity (equal or larger).
- Hot-swap the failed disk. The replacement disk will appear in iDRAC as Ready or Foreign.
- If Foreign (disk has a previous RAID config):
racadm storage clearconfig:RAID.Integrated.1-1
# Or clear only the foreign config:
racadm storage importconfig:RAID.Integrated.1-1
# If you want to import rather than clear — review first- Verify auto-rebuild has started:
racadm storage get vdisks -o -p RAIDStatus,Progress- If rebuild hasn’t started automatically, check that auto-rebuild is enabled:
racadm get RAID.Integrated.1-1.AutoConfig
# If disabled:
racadm set RAID.Integrated.1-1.AutoConfig 1- Alternatively, manually assign the replacement disk as a rebuild target:
In the web UI: Storage > Virtual Disks > [degraded VD] > Replace Member Disk. Select the new physical disk.
- Monitor rebuild to 100% completion before closing the incident.
12d. RAID 5 and RAID 6 Failure Risk
RAID 5 can tolerate one disk failure. During a rebuild, a second disk failure causes total data loss. If you’re running RAID 5 on spinning disks and the array is degraded, treat it as a P1 — rebuild time on large HDDs can exceed 24 hours, during which you have zero redundancy. Consider RAID 6 for spinning disk arrays of four or more drives.
Step 13: Hardware Fault Troubleshooting
📋 Runbook Callout
Firefighting? Pull the Lifecycle Controller log first. Build the fault timeline before touching hardware. Support teams will ask for this log — have it ready.
13a. DIMM Fault Workflow
- Identify the failing slot: iDRAC web UI > System > Hardware > Memory. Note the slot identifier (e.g., A1, B3).
racadm getsysinfo -d | grep -A5 "Memory"- Classify the error: Correctable ECC errors = degrading DIMM, schedule replacement. Uncorrectable ECC errors = immediate replacement required, OS stability is compromised.
- Schedule a maintenance window. Power off the server safely.
- Reseat the DIMM in the identified slot. A significant percentage of ECC faults are caused by loose contact — reseat before ordering a replacement.
- Power on and monitor. If error counts resume within hours, the DIMM is genuinely faulty.
- Replace with an identical DIMM — same capacity, speed, rank, and manufacturer where possible. Check the Memory Compatibility Matrix for your PowerEdge model on dell.com/support.
- After replacement, clear the fault in the iDRAC Dashboard if it persists post-replacement.
13b. PSU Fault Handling
iDRAC web UI > System > Hardware > Power Supplies shows individual PSU status.
For a single PSU failure in a redundant configuration: the server continues running on the remaining PSU. Hot-swap the failed unit — PowerEdge PSUs are designed for live replacement. Confirm the replacement PSU is detected and shows Online in iDRAC before closing the ticket.
For a non-redundant single-PSU server: a PSU failure means a hard power loss. Replacement requires a maintenance window.
13c. Thermal Shutdown Root Cause Analysis
If iDRAC initiated a thermal shutdown:
- Check iDRAC > System > Hardware > Fans — identify any fan at 0 RPM (failed).
- Check iDRAC > System > Hardware > Temperatures — identify which zone exceeded threshold.
- Check the Lifecycle Controller log for the exact timestamp and event sequence.
- Physical inspection checklist:
- All PCIe slot blanking panels in place?
- All empty drive bay fillers installed?
- Cable routing not blocking airflow path?
- Ambient temperature in the rack within spec (typically < 35°C inlet)?
- If a fan failure is confirmed:
# Identify fan slot from iDRAC
racadm getsensorinfo | grep FanHot-swap the failed fan module if the PowerEdge model supports it (most do).
- If no hardware fault is found, increase the thermal profile:
racadm set System.ThermalSettings.ThermalProfile MaximumPerformance⚠️ Trade-off: The
MaximumPerformanceprofile runs fans at higher speeds to maximize cooling headroom. This results in noticeably increased noise levels and higher power consumption. Use this profile only when thermal stability is the priority and the trade-off is acceptable for your environment.
13d. What to Pull Before Opening a Dell Support Case
# System information summary
racadm getsysinfo > support-sysinfo.txt
# Hardware inventory
racadm hwinventory > support-inventory.txt
# Lifecycle Controller log export
racadm lclog export -f support-lclog.xml
# System Event Log
racadm getsel > support-sel.txt
# Current firmware versions
racadm getversion > support-firmware.txtAttach all five files to your support case along with the Service Tag (visible on the iDRAC Dashboard or racadm getsysinfo | grep "Service Tag").
Step 14: Access and Connectivity Troubleshooting
📋 Runbook Callout
Firefighting? Work through these steps in order. Most connectivity issues resolve at the network or credential layer before requiring a reset. A reset should be the last resort, not the first.
14a. iDRAC Web UI Unreachable
Work through this sequence:
# Step 1: Basic reachability
ping <iDRAC-IP>
# Step 2: Check ARP table (confirms iDRAC MAC is visible on the network)
arp -n <iDRAC-IP>
# Step 3: Confirm port 443 is responding
curl -sk https://<iDRAC-IP>/redfish/v1
# Should return JSON with Redfish version infoIf ping fails: check switch port VLAN membership — the iDRAC management port must be in the same VLAN as your management workstation or routed correctly.
If ping succeeds but port 443 is refused: check firewall rules between your workstation and the iDRAC IP.
If port 443 responds but the web UI is broken: try a soft reset (does not affect running OS):
racadm -r <iDRAC-IP> -u root -p YOUR_PASSWORD racreset
# Wait 2 minutes, then retry14b. IP Address Unknown — Recovery Options
In priority order:
- LCD front panel: Navigate to Setup > iDRAC to read the current IP.
- iDRAC Direct USB: Connect USB cable, assign
169.254.0.4/16to your workstation interface, access iDRAC athttps://169.254.0.3. - Local RACADM from host OS:
racadm getniccfg -n idrac14c. Lockout Recovery
If the account is locked due to failed login attempts (default lockout: 5 failures within 60 seconds, 30-minute lockout — these are iDRAC 9 defaults and may differ if your organization has customized the lockout policy):
Wait 30 minutes — the lockout expires automatically.
If the account is permanently disabled or you can’t wait:
# Via local RACADM from host OS (bypasses network lockout)
racadm set iDRAC.Users.2.Enable 1
racadm set iDRAC.Users.2.Password 'NewP@ssword!'If all local access is lost: enter the Lifecycle Controller (F10 at POST) > System Setup > iDRAC Settings > Reset to Factory Defaults. This resets credentials but also wipes all configuration — rebuild from your SCP backup.
After recovery, configure a reasonable lockout policy:
racadm set iDRAC.UserDomain.1.LockoutPeriod 60
racadm set iDRAC.UserDomain.1.LockoutFailCount 1014d. Soft Reset vs. Hard Reset
| Reset type | Command | Effect on running OS | When to use |
|---|---|---|---|
| Soft (iDRAC restart) | racadm racreset | None — OS keeps running | iDRAC hung, web UI broken |
| Hard (iDRAC factory reset) | LCD or LC > Factory Defaults | None — OS keeps running | Configuration completely broken, lockout with no recovery path |
| Server power cycle | racadm serveraction powercycle | OS reboots | OS unresponsive |
Step 15: Lifecycle Controller Log — Reading the Audit Trail
📋 Runbook Callout
Setting up? Establish a routine for periodic log review as part of your operational baseline.
Firefighting? The LC log is your first stop. Build the fault timeline before touching any hardware or escalating to support.
15a. LC Log vs. System Event Log (SEL)
| Log | What it captures | Persistence | Access |
|---|---|---|---|
| Lifecycle Controller (LC) Log | Firmware changes, configuration events, hardware faults with full context | Persistent across reboots and iDRAC resets | iDRAC web UI > Maintenance > Lifecycle Log |
| System Event Log (SEL) | Low-level hardware sensor threshold events (IPMI-style) | Persistent, but smaller buffer — wraps | iDRAC web UI > Maintenance > System Event Log |
Use the LC log for root cause analysis and support case documentation. Use the SEL for raw sensor event correlation.
15b. Navigate and Filter the LC Log

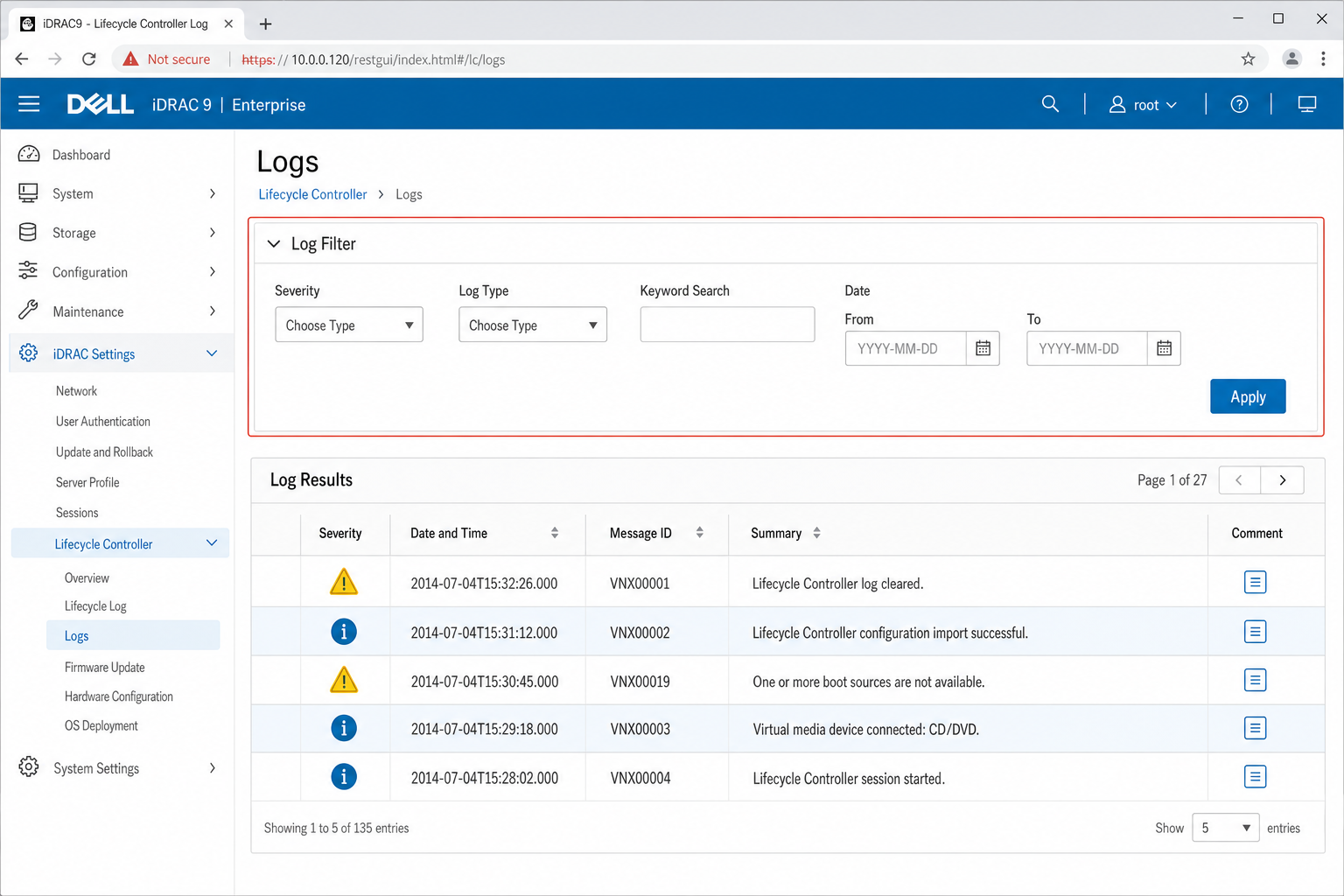

In the web UI: Maintenance > Lifecycle Log. Use the filter controls to narrow by:
- Severity: Critical, Warning, Informational
- Category: System Health, Storage, Configuration, Updates, Audit
- Date range: Essential for correlating with a known incident window
15c. Export the LC Log
racadm lclog export -f /tmp/lclog-svr01.xml
# Exports full LC log as XML — attach to support cases15d. Pull Log Data for SIEM Integration
# Pull LC log entries from the last 24 hours via RACADM
racadm lclog view -s "2026-05-05 00:00:00" -e "2026-05-06 00:00:00"
# Pull via Redfish for automated SIEM ingestion
# Note: The Lclog/Entries path is correct for iDRAC 9 firmware 6.x.
# On older firmware (5.x and earlier), this path may differ — check your firmware's Redfish schema.
curl -sk -u root:YOUR_PASSWORD \
"https://<iDRAC-IP>/redfish/v1/Managers/iDRAC.Embedded.1/LogServices/Lclog/Entries"Expected JSON response structure:
{
"@odata.context": "/redfish/v1/$metadata#LogEntryCollection.LogEntryCollection",
"@odata.type": "#LogEntryCollection.LogEntryCollection",
"Members": [
{
"Id": "1",
"Severity": "OK",
"Created": "2026-05-05T14:23:01Z",
"Message": "The iDRAC firmware update was completed successfully.",
"MessageId": "SWC0001"
}
],
"Members@odata.count": 1
}15e. Key LC Event IDs to Recognize
| Event ID | Meaning |
|---|---|
| SWC0001 | iDRAC firmware update completed |
| MEM0001 | Memory ECC correctable error detected |
| MEM0002 | Memory ECC uncorrectable error — critical |
| STOR001 | Virtual disk state change (Optimal/Degraded/Failed) |
| STOR004 | Physical disk state change |
| THER0001 | Temperature threshold exceeded |
| PWR1004 | PSU failure detected |
| USR0001 | User login/logout audit event |
| RAC0182 | iDRAC configuration change |
Step 16: iDRAC Group Manager and Multi-Server Management
📋 Runbook Callout
Setting up? Evaluate Group Manager if you’re managing 5–50 servers without a centralized management platform. For more than 50 servers, deploy OpenManage Enterprise instead.
Firefighting? Group Manager’s fleet health view can quickly confirm whether a fault is isolated to one node or affecting multiple servers in the group.
iDRAC Group Manager requires Enterprise or Datacenter license on all enrolled servers.
16a. When to Use Group Manager vs. OpenManage Enterprise
| Scenario | Use |
|---|---|
| 2–50 PowerEdge servers, no centralized management tool | iDRAC Group Manager |
| 50+ servers, policy enforcement, reporting, compliance | OpenManage Enterprise |
| Automated fleet firmware updates at scale | OpenManage Enterprise |
| Quick fleet health check without additional infrastructure | iDRAC Group Manager |
Group Manager is peer-to-peer — one iDRAC acts as the group leader. It requires no additional server or software. OpenManage Enterprise is a dedicated management appliance (virtual or physical) that scales to thousands of nodes. Use Dell’s current OpenManage Enterprise documentation for the full deployment workflow.
16b. Enroll Servers in a Group

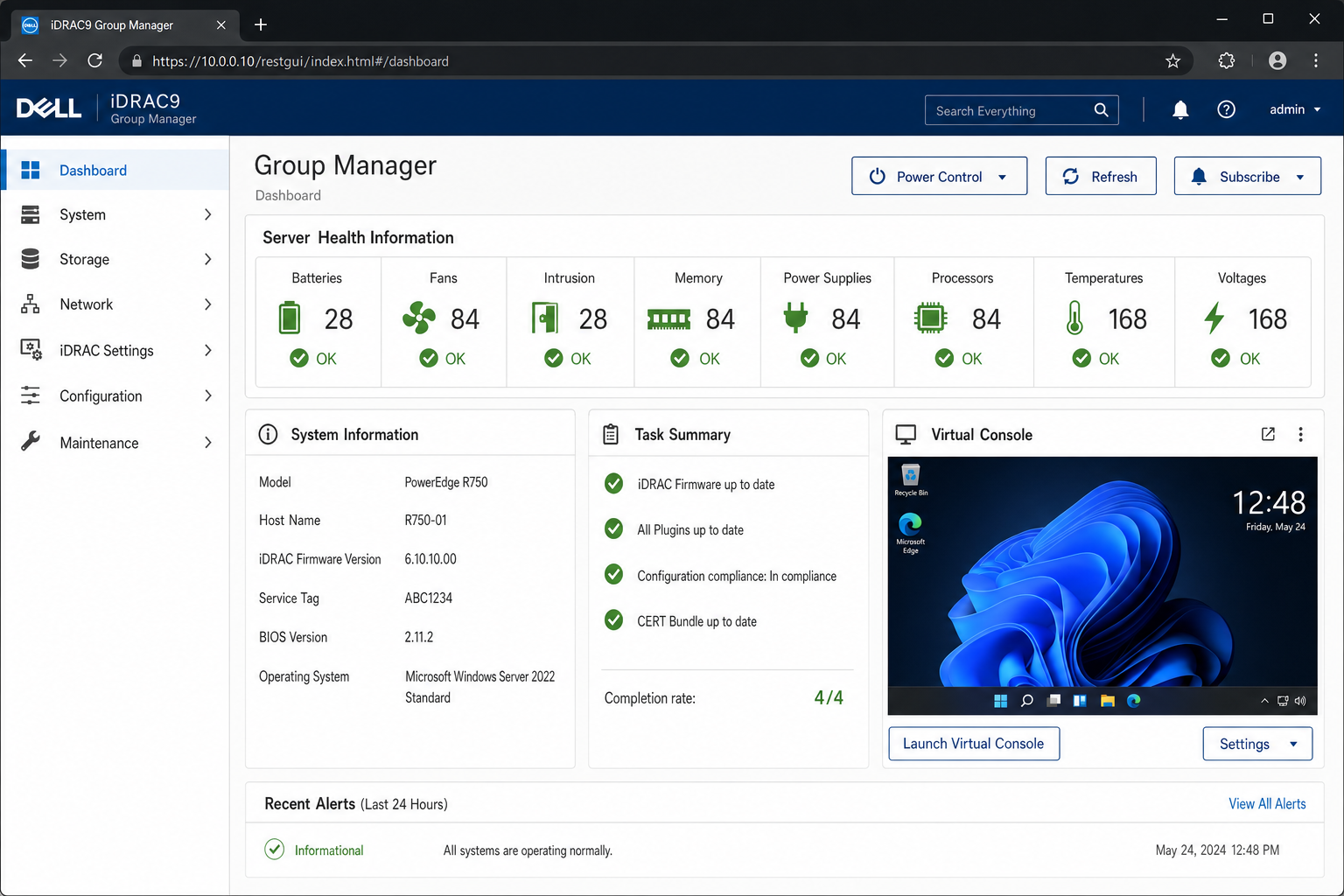

On the designated group leader iDRAC: iDRAC Settings > Group Manager > Enable Group Manager. Set a group name and passphrase.
On each member server: iDRAC Settings > Group Manager > Join Existing Group. Enter the group name and passphrase.
16c. Push Configuration to the Group
From the group leader web UI: Group Manager > Configuration > Apply Configuration to Group. Select which configuration components to push (network settings, user accounts, alert settings). This applies the leader’s current configuration to all enrolled members.
16d. Firmware Orchestration
From the group leader: Group Manager > Firmware Update. Select a catalog source and schedule updates across all group members. Updates are applied sequentially by default — configure the concurrency setting based on your tolerance for simultaneous reboots.
With the troubleshooting runbooks in hand, you have a complete end-to-end reference for both standing up and recovering Dell PowerEdge servers. Part 6 — the final part of this series — is the quick-reference appendix: the full RACADM cheat sheet, port reference table, alert category guide, licensing feature comparison, common LC event IDs, Dell support resource links, and a complete glossary of iDRAC terminology.
