This final part of the Dell iDRAC 9 runbook series is designed to live open in a browser tab during both setup and incident response. Parts 1–5 walked through the full configuration and troubleshooting lifecycle; this appendix distills the most frequently needed reference material into a single, scannable page — no narrative, just the commands, tables, and links you reach for under pressure.
If you arrived here directly from a search, the RACADM cheat sheet below covers the most common operations. For the full configuration walkthrough, start with Part 1 of this series.
Configuration Reference
Common Settings Summary
| Setting | RACADM path | Recommended value |
|---|---|---|
| NIC selection | iDRAC.NIC.Selection | Dedicated |
| DHCP disable | iDRAC.IPv4.DHCPEnable | 0 |
| VLAN enable | iDRAC.NIC.VLanEnable | 1 |
| IPMI over LAN | iDRAC.IPMILan.Enable | 0 (disabled) |
| TLS minimum | iDRAC.WebServer.TLSProtocol | TLS_1_2_and_higher |
| SNMP community | iDRAC.SNMP.AgentCommunity | Change from public |
| Thermal profile | System.ThermalSettings.ThermalProfile | DefaultFanSpeedOffset or MaximumPerformance |
Tips and Troubleshooting
Virtual console blank screen after launch

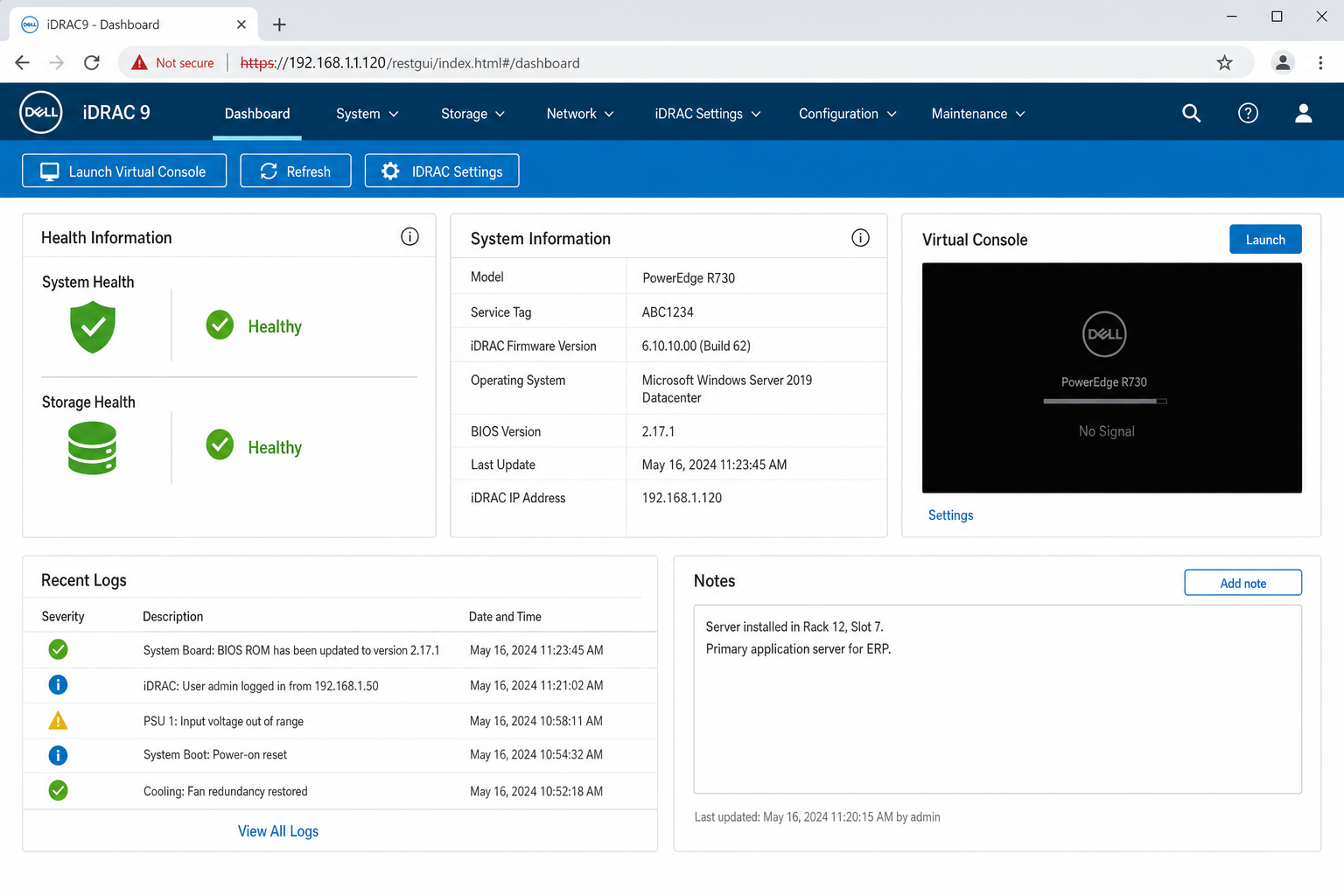

Confirm license tier: iDRAC Settings > Overview > License must show Enterprise or Datacenter. If licensed, check concurrent session count — iDRAC limits virtual console to 6 simultaneous sessions by default. Terminate stale sessions under iDRAC Settings > Services > Virtual Console. If still blank after a valid license is confirmed, perform a soft reset: racadm racreset, then retry after 2 minutes.
Firmware update job stuck in queue
# View current job queue
racadm jobqueue view
# Delete all pending jobs (do this during a maintenance window)
racadm jobqueue delete --all
# Resubmit the updateConfirm the firmware image matches your exact PowerEdge model by downloading via your server’s Service Tag at dell.com/support.
RACADM remote authentication fails
# Test basic Redfish connectivity first
curl -sk -u root:YOUR_PASSWORD https://<iDRAC-IP>/redfish/v1
# Add SSL skip flag to RACADM for troubleshooting
racadm -r <iDRAC-IP> -u root -p YOUR_PASSWORD -S ssl getsysinfoIf the web UI accepts the credentials but RACADM fails, check that port 443 is open and not filtered by an intermediate proxy.
Alerts silently stopped working

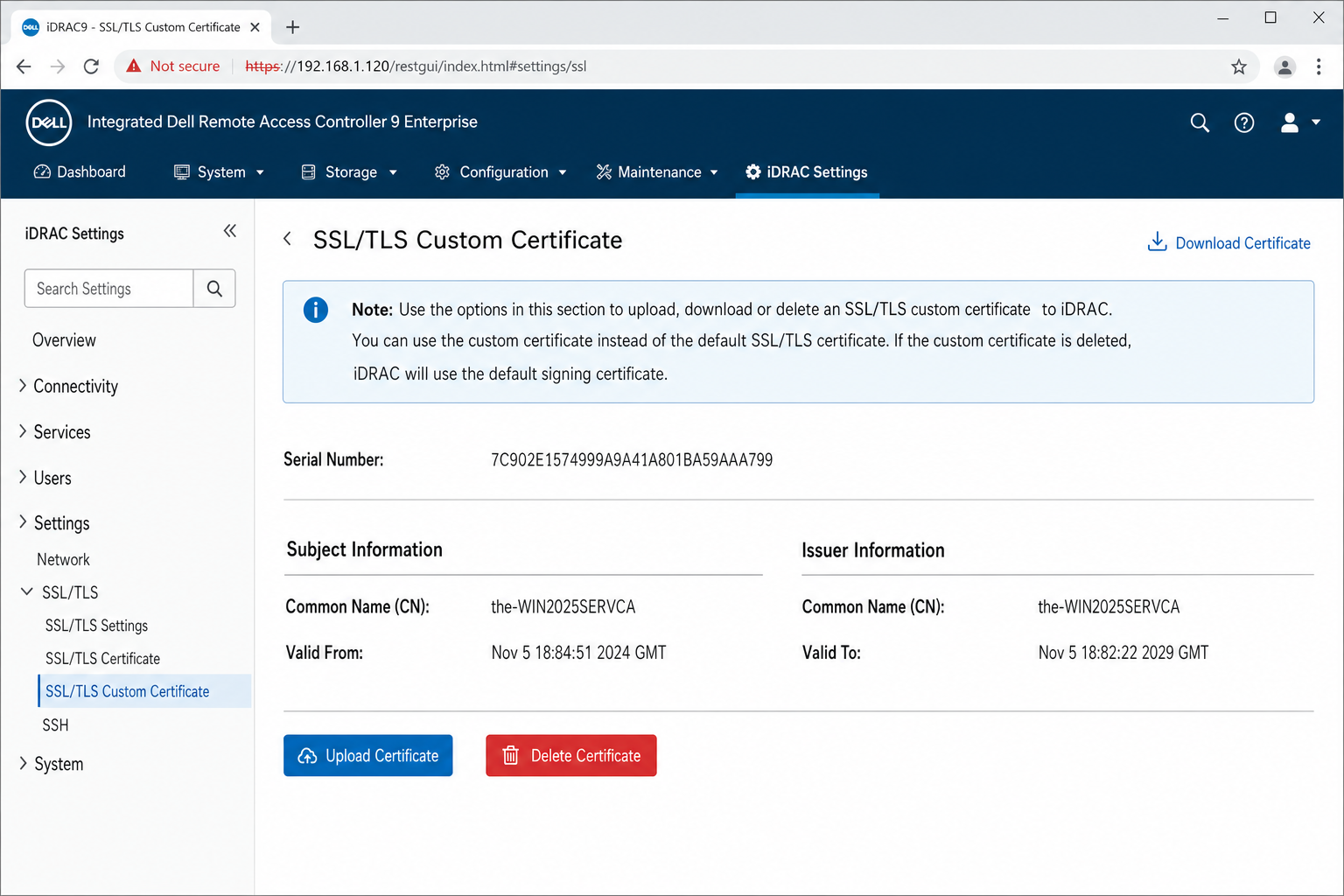

Check the SSL certificate expiry date first — monitoring tools that validate certificates will silently fail when the iDRAC cert expires. Navigate to iDRAC Settings > Services > Web Server > SSL to check the expiry date. If expired, regenerate the CSR and upload a new signed certificate (Step 5).
Then send a test alert: racadm testalert -l 1 and verify delivery.
SNMP traps not arriving at receiver
Capture traffic on the receiver to confirm packets are arriving: run a packet capture on the trap receiver host filtering for UDP port 162 from the iDRAC IP. If packets arrive but aren’t processed, the issue is in the receiver configuration. If no packets arrive, the problem is network routing or a firewall rule between iDRAC and the trap destination.
Appendix: Quick Reference

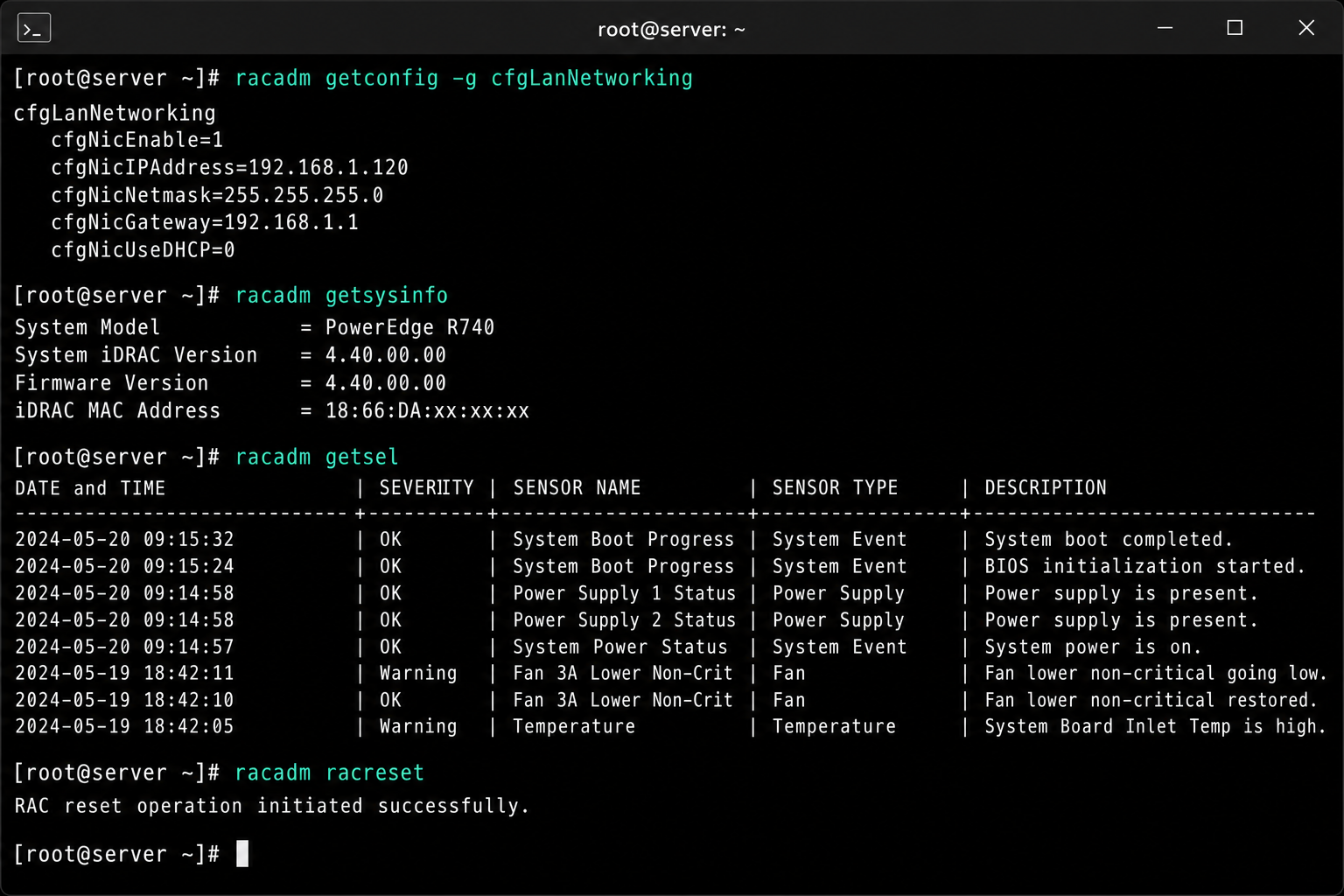

RACADM Cheat Sheet
# System info
racadm getsysinfo
# NIC config
racadm getniccfg -n idrac
# Get any iDRAC setting
racadm get iDRAC.<Group>.<Attribute>
# Set any iDRAC setting
racadm set iDRAC.<Group>.<Attribute> <value>
# Server power actions
racadm serveraction powerdown
racadm serveraction powerup
racadm serveraction powercycle
racadm serveraction graceshutdown
# Soft-reset iDRAC only (OS unaffected)
racadm racreset
# View job queue
racadm jobqueue view
# Delete all jobs
racadm jobqueue delete --all
# Storage: list controllers
racadm storage get controllers
# Storage: list virtual disks
racadm storage get vdisks -o -p Name,RAIDStatus,RemainingRedundancy
# Storage: list physical disks
racadm storage get pdisks -o -p DeviceDescription,State,Size
# Blink disk locator LED
racadm storage blink:<disk-FQDD>
# Export LC log
racadm lclog export -f lclog.xml
# Export SCP (full config)
racadm get -f config.xml -t xml -l ALL
# Import SCP
racadm set -f config.xml -t xml -l ALL -s TIME_NOW
# Firmware versions
racadm getversion
# Sensor readings
racadm getsensorinfo
# Hardware inventory
racadm hwinventory
# Test alert delivery
racadm testalert -l 1Port Reference Table
| Port | Protocol | Direction | Service |
|---|---|---|---|
| 443 | TCP | Inbound to iDRAC | Web UI, Redfish API, HTML5 console |
| 22 | TCP | Inbound to iDRAC | SSH / firmware RACADM |
| 5900 | TCP | Inbound to iDRAC | VNC console path |
| 162 | UDP | Outbound from iDRAC | SNMP traps |
| 514 | UDP/TCP | Outbound from iDRAC | Syslog |
| 25/465/587 | TCP | Outbound from iDRAC | SMTP email alerts |
| 623 | UDP | Inbound to iDRAC | IPMI over LAN — disable |
| 3269 | TCP | Outbound from iDRAC | AD/LDAP (Global Catalog SSL) |
Alert Category Reference
| Category | Key events | Recommended action threshold |
|---|---|---|
| System Health | CPU fault, memory fault, voltage | Critical + Warning |
| Storage | Virtual disk degraded/failed, predictive disk failure | Critical + Warning |
| Thermal | Temperature threshold exceeded, fan failure | Critical |
| Power | PSU failure, power budget exceeded | Critical |
| Configuration | iDRAC config changes, firmware updates | Informational (audit) |
| Audit | Login/logout events, user changes | Informational (SIEM) |
| Updates | Firmware update success/failure | Informational |
Licensing Feature Comparison
| Feature | Basic | Express | Enterprise | Datacenter |
|---|---|---|---|---|
| Hardware health dashboard | ✓ | ✓ | ✓ | ✓ |
| LC Log / SEL | ✓ | ✓ | ✓ | ✓ |
| RACADM (limited) | ✓ | ✓ | ✓ | ✓ |
| Virtual console (KVM) | ✗ | Limited | ✓ | ✓ |
| Virtual media | ✗ | ✗ | ✓ | ✓ |
| AD/LDAP auth | ✗ | ✗ | ✓ | ✓ |
| SNMP v3 | ✗ | ✗ | ✓ | ✓ |
| Syslog forwarding | ✗ | ✗ | ✓ | ✓ |
| Redfish API (full) | ✗ | ✗ | ✓ | ✓ |
| SCP export/import | ✗ | ✗ | ✓ | ✓ |
| Group Manager | ✗ | ✗ | ✓ | ✓ |
| Telemetry streaming | ✗ | ✗ | ✗ | ✓ |
| iDRAC Direct (full) | ✗ | ✗ | ✗ | ✓ |
Common LC Event IDs
| Event ID | Meaning | Severity |
|---|---|---|
| MEM0001 | Correctable ECC error | Warning |
| MEM0002 | Uncorrectable ECC error | Critical |
| STOR001 | Virtual disk state change | Warning/Critical |
| STOR004 | Physical disk state change | Warning/Critical |
| STOR006 | Predictive failure (SMART) | Warning |
| THER0001 | Temperature threshold exceeded | Critical |
| PWR1004 | PSU failure | Critical |
| FAN0001 | Fan failure | Critical |
| RAC0182 | iDRAC configuration change | Informational |
| USR0001 | User login/logout | Informational |
| SWC0001 | Firmware update completed | Informational |
Dell Support Resources
- Firmware downloads by Service Tag: dell.com/support — enter your Service Tag for model-specific firmware
- iDRAC 9 official documentation: dell.com/support — iDRAC 9 Lifecycle Controller v6.x docs
- Redfish API reference: developer.dell.com
- iDRAC Redfish scripting examples: github.com/dell/iDRAC-Redfish-Scripting
- Dell OpenManage Ansible modules: github.com/dell/dellemc-openmanage-ansible-modules
- Dell TechCenter community forum: dell.com/community — PowerEdge Hardware
- Dell Repository Manager (DRM): Dell DRM information guide
Glossary
| Term | Definition |
|---|---|
| iDRAC | Integrated Dell Remote Access Controller — the out-of-band management controller embedded in PowerEdge servers |
| RACADM | Remote Access Controller Admin — the CLI for iDRAC management |
| LC | Lifecycle Controller — the persistent firmware environment for updates, inventory, and configuration |
| SEL | System Event Log — IPMI-level hardware sensor event log |
| PERC | PowerEdge RAID Controller — Dell’s embedded RAID controller family |
| SCP | System Configuration Profile — full server configuration export/import format |
| LOM | LAN on Motherboard — shared NIC used for both host traffic and iDRAC when dedicated NIC is not used |
| FQDD | Fully Qualified Device Descriptor — iDRAC’s unique identifier for hardware components (e.g., Disk.Bay.0:Enclosure.Internal.0-1:RAID.Integrated.1-1) |
| VD | Virtual Disk — a RAID volume presented to the OS by the PERC controller |
| PD | Physical Disk — an individual drive in the system |
| DRM | Dell Repository Manager — tool for creating and hosting local firmware catalogs |
| SID | Service Tag ID — Dell’s unique server identifier, used for support and firmware lookups |
| KVM | Keyboard/Video/Mouse — the virtual console that gives remote access to the server’s display |
Wrapping Up
With this runbook in hand, you can stand up a new PowerEdge from zero to production-ready — with static IP, named user accounts, signed certificates, verified alerting, and a current firmware baseline — in a single maintenance window. When something breaks, the troubleshooting sections give you a structured path from symptom to resolution without guessing.
The single most valuable habit to build: export the LC log before touching hardware during an incident. That timestamp trail is what separates a clean root-cause analysis from a support case that drags on for days.
This appendix wraps up the complete Dell iDRAC 9 runbook series. Across six parts, we covered everything from first login and network hardening through RAID management, firmware updates, virtual console access, automation with RACADM and Redfish, and structured troubleshooting runbooks for the most common PowerEdge hardware incidents. Bookmark this quick-reference page and the troubleshooting runbook in Part 5 — those are the two you’ll return to most often in production.
